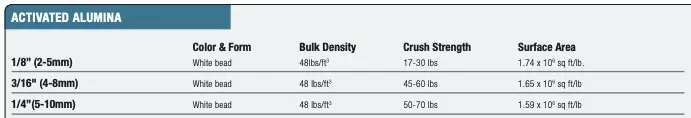

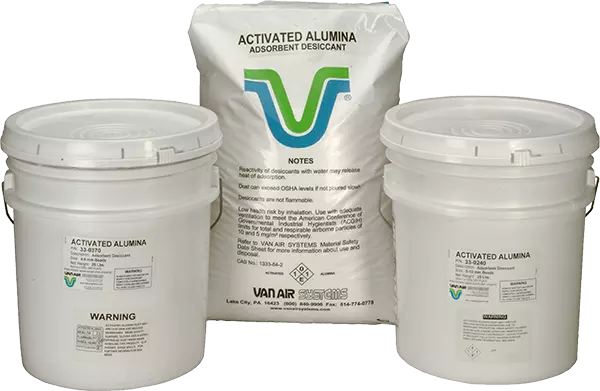

Van Air Systems Activated Alumina is an aluminum oxide bead with an extremely porous structure and high surface area-to-mass ratio. Its service life capacity is 2 to 5 years. Activated alumina has a wide variety of applications, including compressed air and gas drying. In compressed air and gas drying applications, activated alumina will achieve dew points -40°F to -100°F, depending on the dryer design. In compressed air desiccant dryers, a 1/8″ (2-5 mm) activated alumina bead is most commonly used. The 1/4″ (5-10 mm) activated alumina bead is typically used as a pre-bed for supporting large desiccant beds or as a buffer for silica gel beds. The 3/16″ (5-10 mm) bead is used when pressure drop and surface area requirements fall between the 1/8″ and 1/4″ material.
Dryer Desiccants
With more than 65 years of experience developing desiccant formulas, Van Air Systems is the original and leading manufacturer of deliquescent desiccants for drying compressed air and gases. From a definition standpoint, a desiccant is a hygroscopic substance used as a drying agent. Many are commonly encountered in packaging to keep the contents dry and free from mold or mildew. However, for many industrial uses, deliquescent desiccants are a dependable, cost-effective, and energy-free tool for a wide range of industrial drying applications. Van Air Systems offers a variety of adsorbent desiccants, including activated alumina, silica gel, and molecular sieve. These desiccants are used in point-of-use applications, as well as in regenerative drying applications.
Vanair Activated Alumina Features
Features
- Low to zero dust discharge
- High adsorption capacity
- Low abrasion
- High crush strength
Applications
- Regenerative dryers
- Acid removal
- Process stream purification
- Hydrocarbon adsorption
About Vanair Systems
Since 1944, Vanair Systems, located in Lake City, Pennsylvania, designs and manufactures dryers and desiccants for the dehydration of compressed air and natural gas. Van Air Systems’ compressed air dryers include single-tower deliquescent dryers, regenerative compressed air dryers, and natural gas dryers. Van Air Systems also manufactures products for the treatment of compressed air and natural gas which include adsorbent & deliquescent desiccants, particulate & coalescing filters, automatic condensate drains, and after-coolers. Having served for more than six decades and tens of thousands of customers in virtually every industry, Van Air Systems and its extensive network of factory-trained distributors are uniquely prepared to deliver the world’s finest solutions for cool, clean, and dry compressed air and gas.
Cyclect has the pre-sales, installation, stock and technical support for Vanair Systems products. We identify and recommend a suitable model for your specific application.
