Vanair Aftercoolers

Rugged and compact integrated cooling system for compressors and compressed air

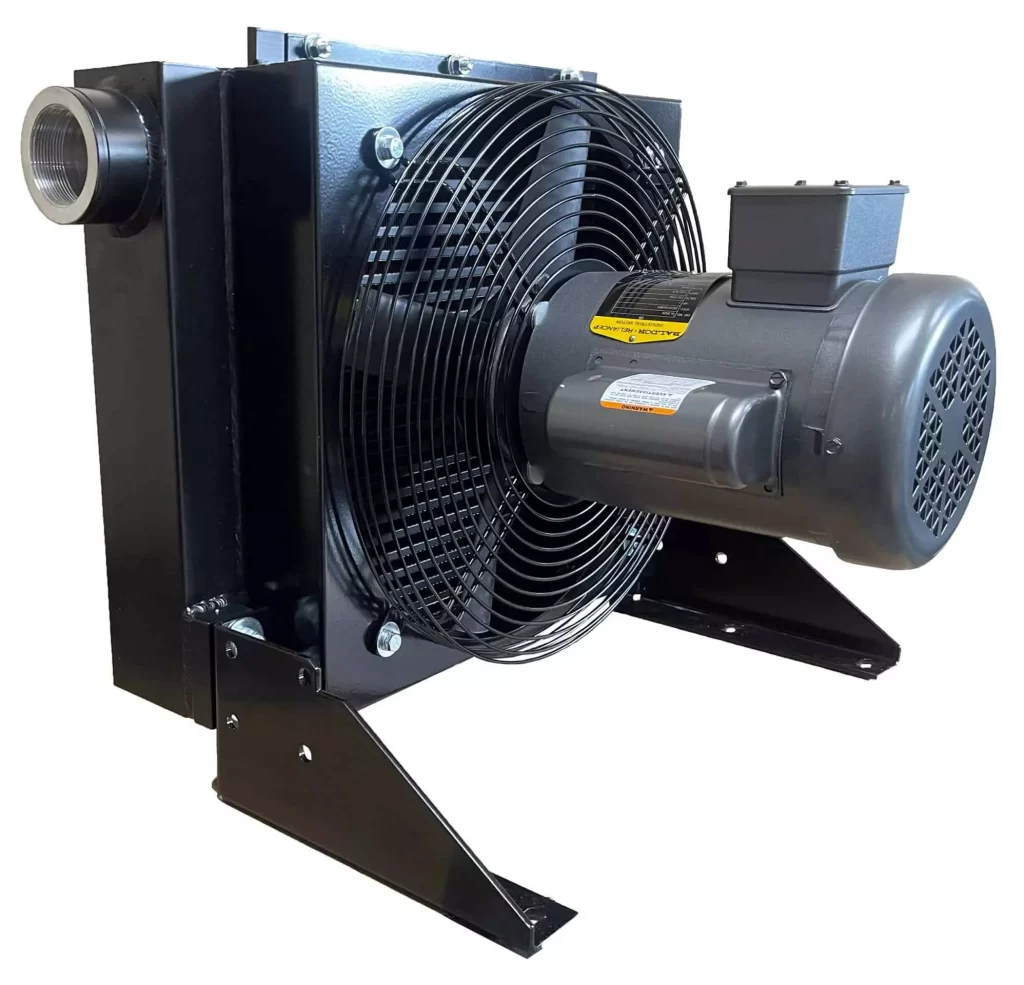

Aftercooler

Van Air Systems Air-Cooled aftercooler offers the best of both worlds in one compact, side by side, combination package. The design features rugged brazed aluminum bar & plate construction with detachable legs for ease of mounting. In a single combined core, the high-performing unit cools rotary screw compressor oil and compressed air. The compact design makes this unit ideal for field conversions, stringent space requirements and remote location mounting.

Innovation
Innovative formulas and process for effective moisture removal
Durability
Designed and manufactured for heavy duty operations
No Moving Parts
Innovative formulas and process for effective moisture removal
Quality
American manufactured quality and technical support
Cost-Effective
Cost-effective to install and operate
Easy Maintenance
Systems are easy to maintain and operate

Vanair Aftercoolers Features

Features

  • Energy efficient
  • Rugged Design
  • High Performance
  • Horizontal or vertical flow directions
  • Compact and lightweight
  • High Flows 50- 3500 CFM
  • Detachable Legs

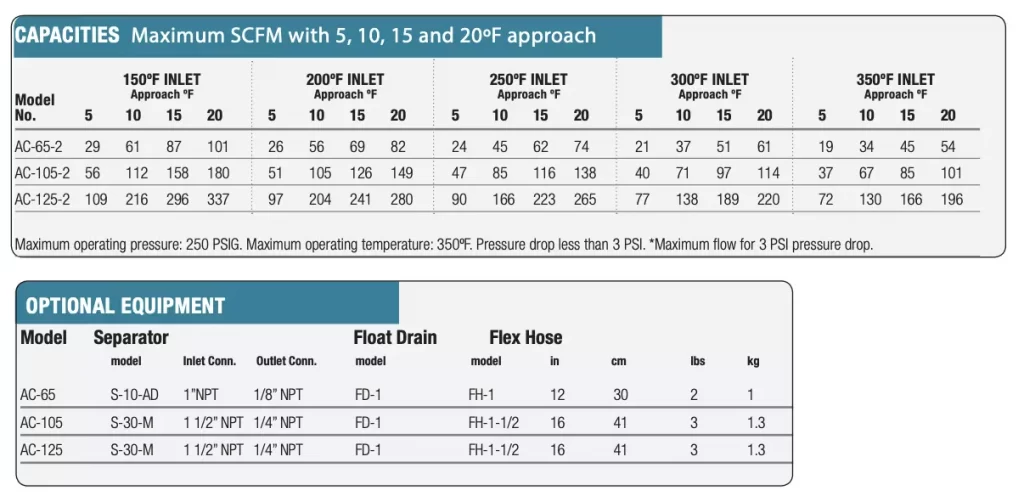

Specifications

  • Maximum Operating Pressure: 250 PSI
  • Maximum Operating Temperature: 350°F
  • Materials:
    • Cabinet – Steel with baked enamel finish
    • Core – Brazed aluminum bar and plate
    • Fan – Aluminum hub, polypropylene blades
    • Motor – TEFC
    • Fan Guard – Steel with baked enamel finish
  • Voltage options:
    • 115/230-1-60
    •  230/460-3-60

Applications

  •  Anytime compressed air temps exceed 100°F
  • Best to be installed before a compressed air dryer
  • Perfect for rotary screw compressors
Aftercooler
Van Air Systems

About Vanair Systems

Since 1944, Vanair Systems, located in Lake City, Pennsylvania, designs and manufactures dryers and desiccants for the dehydration of compressed air and natural gas. Van Air Systems’ compressed air dryers include single-tower deliquescent dryers, regenerative compressed air dryers, and natural gas dryers. Van Air Systems also manufactures products for the treatment of compressed air and natural gas which include adsorbent & deliquescent desiccants, particulate & coalescing filters, automatic condensate drains, and after-coolers. Having served for more than six decades and tens of thousands of customers in virtually every industry, Van Air Systems and its extensive network of factory-trained distributors are uniquely prepared to deliver the world’s finest solutions for cool, clean, and dry compressed air and gas.

Cyclect has the pre-sales, installation, stock and technical support for Vanair Systems products. We identify and recommend a suitable model for your specific application.
