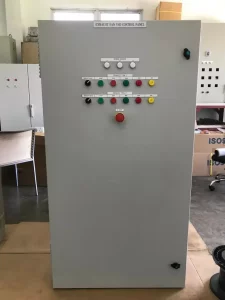

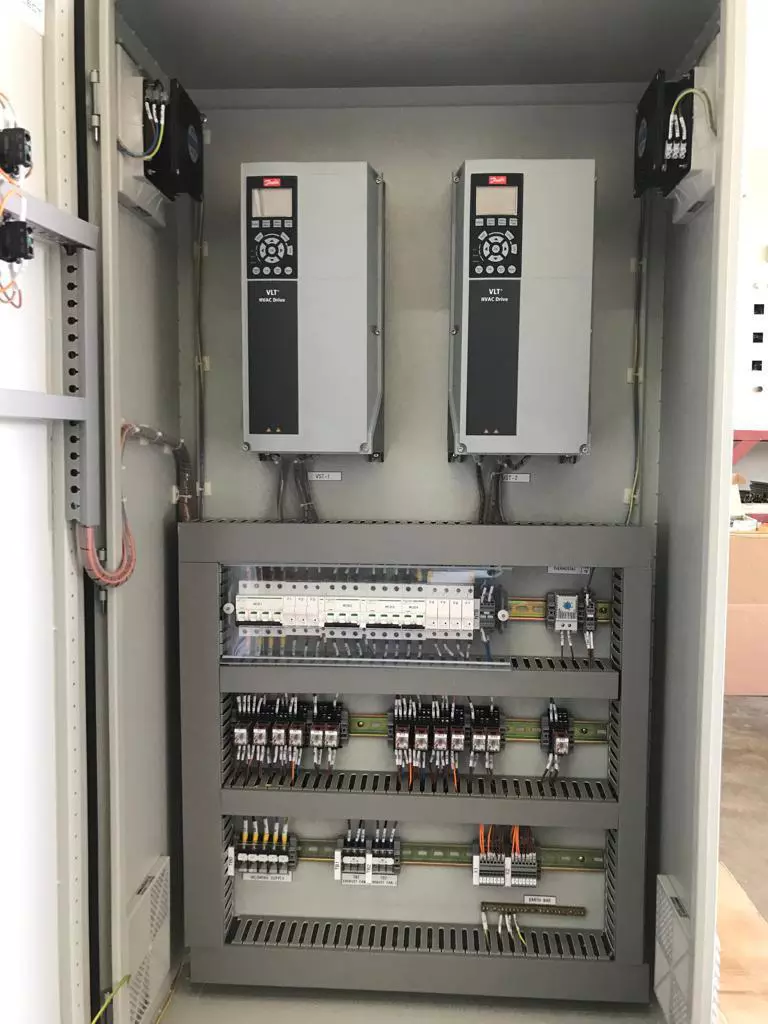

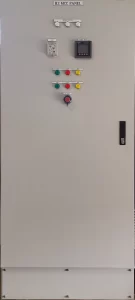

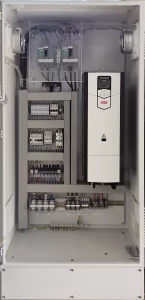

Cyclect VFD Panel

Cyclect VFD Panel controls electric motors (including fans and pumps) at variable speeds to save energy and cost. These VFD panels are also known as a Variable Frequency Drive Control Panel, or AC drive electrical control panel.

Our VFD panels typically have an enclosed cabinet structure with IEC/NEMA ingress protection ratings where the application environments require various types of protection. weatherproofing and waterproofing. The panels’ surfaces are coated spray for further protection, and they are simple to install in parallel, with the panel top configuring bus and wiring the VFD keypad.

Quality

Our process is ISO9001 certified and designed for reliability & low maintenance

Modular and Compact

Our compact modular panels are built for easy installation

Customised

Our systems are fully customised built-to-suit systems, meeting any operating environment

Superior Documentation

Superior documentation and labelling for reliable and safe operations

Energy and Cost Saving

Our panels are build to reduce energy and operating cost

Support

Our manufacturing, project and service teams provide reliable after-sale support

On-time Delivery

We are committed to meet all agreed delivery dates

Safe

Built in compliance with IEC or NEMA rating standards for safety and reliability

Cyclect VFD Panel Technical Features

Features

Speed variation in response to input sensors
Integrated circuit protection
Non-Bypass, Mechanical Bypass or Electronic Bypass
LCD, Key Pad, or HMI options for input
SCADA integration or leverage existing or developed IoT platform with Artificial Intelligence powered motor failure prediction
Optional Pilot indicator lights

Power Supply

230VAC
120VAC
24VDC

Rating Standards

IEC (IP42, IP44, IP54, IP55, IP65)
NEMA

Communication

Able to communicate with DCS, BMS or other plant computers

Documentation

Detailed design drawings
All components are dual tagged

Enclosure Type

Flat
Breakfront
Console-type

Enclosure Material

Carbon Steel
Stainless Steel
Aluminum
Polycarbonate Plastic

Easy Installation Method Options

DIN Rail
Base Mounted

Other Features and Options

Emergency Stop
Ethernet Switch
Circuit breaker
RCCB
Individually fused outputs for control circuit supplementary protection.

Many other options are available

Our Process

Requirements

Cyclect teams work with clients to determine requirements and desired outcomes

Design

Cyclect experienced electrical process engineers design the system based on best practices and industry requirements to meet desired outcomes

Manufacturing

Cyclect in-house fabrication teams will build the system with basic and advanced tools and equipment.

Test

Components and systems will be extensively tested for reliability

Cyclect VFD Panel Applications

Air Handling Units (Supply & Return Fans)
Chilled Water Pumps
Hot Water Pumps
Pressure Boosting Pumps
Compressor motors

About Cyclect Controls

Cyclect designs and manufactures HMI, PLC control panels for various industrial applications. Cyclect’s control panels include PLC, Fire Pump Controls, Remote I/O, VFD Control, and many others.

Cyclect has the pre-sales, installation and technical support services for Cyclect control panels. We identify and recommend a suitable model for your specific application.
