The Direct Air Cooled Condenser System (ACC) is an innovative solution for power stations facing high water consumption, particularly in areas with water shortages. The ACC system uses large axial flow fans to inhale air and skim the tube bundle from the outside, taking away heat and allowing steam to condense into water. With this system, water savings of over 85% can be achieved.
The ACC system includes a range of components, including a tube bundle, air supply and evacuation systems, a condensate system, cleaning system, exhaust steam ducting system, supporting structure, draining system, electrical system, and instrument and control system. It is designed to be flexible and adaptable to a variety of settings.
In addition to its impressive water savings, the ACC system has several other benefits. It occupies less space, has various anti-freezing methods, and has been tested extensively to ensure its performance and reliability. With its technical strength and research backing, the ACC system is an effective solution for power stations seeking to reduce water consumption.
Shuangliang Direct Air Cooled Condenser Technical Features
A key feature of the ACC system is its use of single-row tubes. These tubes are made by welding aluminium serpentine fins to large flat tubes, creating a structure that is both strong and corrosion-resistant. The single-row tubes provide excellent heat transfer performance, with high efficiency, low-pressure loss, and good cleaning ability. They also have good anti-freezing performance, allowing the ACC system to operate effectively in cold temperatures. Overall, the use of single-row tubes is a key factor in the ACC system’s ability to provide reliable, efficient, and water-saving performance.
Shuangliang Direct Air Cooled Condenser Innovations
The Shuangliang Direct Air Cooled Condenser (ACC) system has undergone extensive research and development to ensure its performance and reliability. This work has included nine fundamental research studies, covering a range of topics, including:
- Research on Heat exchange performance Transfer of Heat Exchanger Components
- Research on resistance characteristic on Air Side of Heat Exchanger component
- Research on resistance characteristics of steam side in Heat Exchanger Tube
- Research on the atmospheric corrosion performance of Fins
- Research on fouling performance of tube bundle
- Flushing test of tube bundle fin
- Anti-freezing test of tube bundle
- Numerical Simulation of Direct Air Cooling System
- Fatigue test of direct air cooled tube bundle
Shuangliang Direct Air Cooled Condenser Tests
The Shuangliang Direct Air Cooled Condenser (ACC) system has undergone extensive testing to ensure its performance and reliability. Here are three key tests that have been performed on the ACC system:
- Performance Testing Device for tube bundles: This test is used to evaluate the heat transfer performance of the ACC system’s tube bundles. It involves simulating several running back pressures of the steam turbine, and testing the heat transfer performance and resistance loss of the tube bundle at different wind speeds and steam velocities. This helps to ensure that the ACC system’s tube bundles are able to effectively transfer heat from the steam to the air, and to identify any potential improvements.
- The unique environment test laboratory: This test is used to evaluate the ACC system’s performance in different environmental conditions. The test device is able to simulate summer and winter operating conditions, and is used to test the heat transfer performance of the tube bundle in both hot and cold weather. This helps to ensure that the ACC system is able to operate effectively and efficiently in a wide range of temperatures.
- Full performance test bed: This test is used to evaluate the overall performance of the ACC system, including its heat transfer performance, system reliability, stability, and economy. It involves simulating the main operating conditions of a power station, and testing the system’s ability to operate at full load in summer and its reliability in anti-freezing operations in winter. This helps to ensure that the ACC system is able to deliver reliable, efficient performance in real-world conditions.
Shuangliang Direct Air Cooled Condenser Components

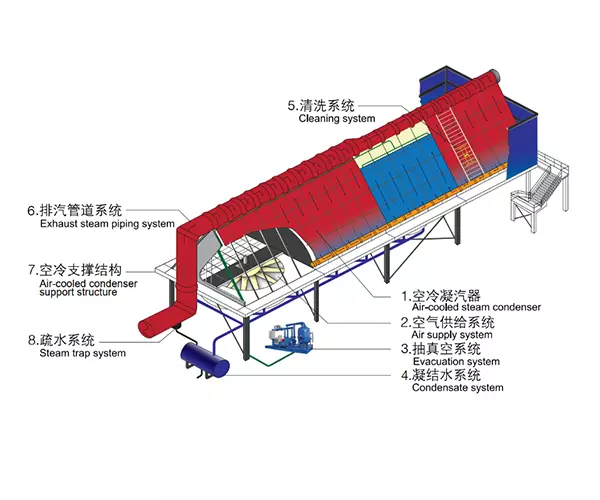

The scope of the Direct Air Cooled Condenser System (ACC) typically includes all equipment and ducting from the outlet of the turbine low pressure cylinder to the inlet of the condensate pump. This includes the following component systems:
- Tube bundle
- Air supply system
- Air evacuation system
- Condensate system
- Cleaning system
- Exhaust steam ducting system
- Supporting structure
- Draining system
- Electrical system
- Instrument & control system
Together, these components work to efficiently distribute exhaust steam from the steam turbine and condense it into water, providing a water-saving solution for power stations.
Shuangliang Direct Air Cooled Condenser Applications
The Direct Air Cooled Condenser System (ACC) has a range of applications in the power generation industry. It is particularly suitable for power stations that are facing high water consumption, particularly in water-scarce areas. With its ability to save over 85% of water compared to traditional systems, the ACC system is an effective solution for reducing water usage and costs.
In addition to its water-saving capabilities, the ACC system is also well-suited to a variety of other applications. It has a range of anti-freezing methods, ensuring reliable operation even in cold temperatures. And it has been extensively tested to ensure its performance and reliability.
Overall, the Direct Air Cooled Condenser System (ACC) is a versatile and effective solution for power stations seeking to reduce water consumption and improve their environmental performance.
