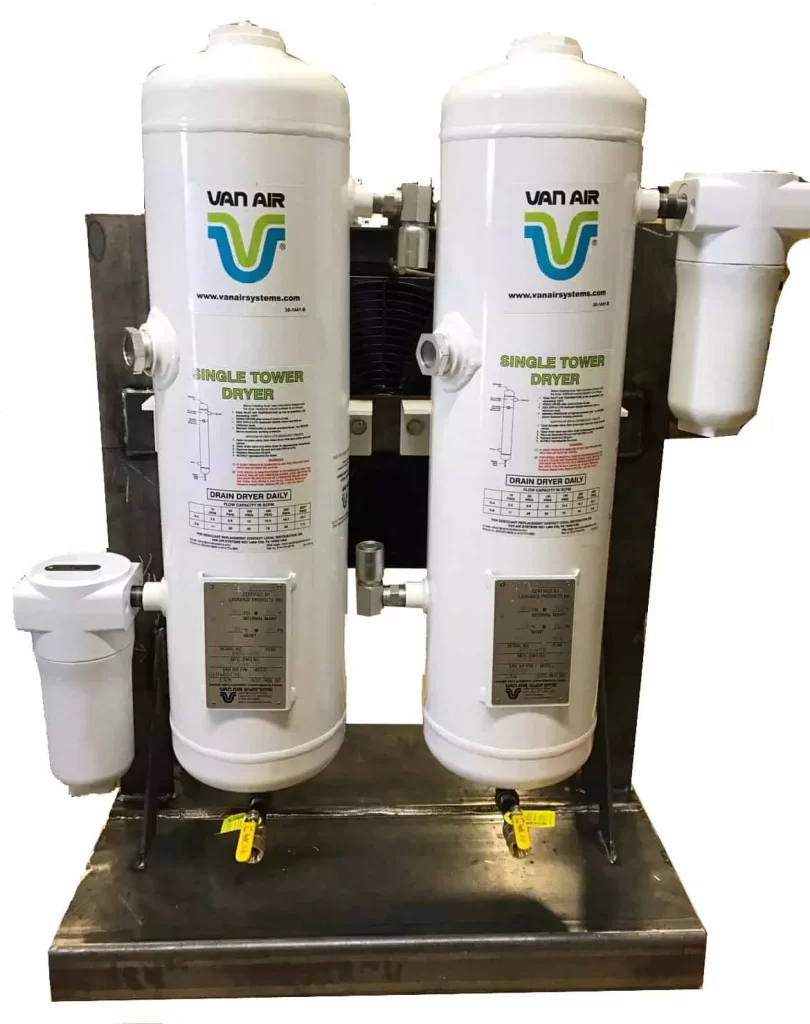

Van Air Systems Dry Pak Duo is a compressed air dryer for lower dew points than what Dry-O-Lite desiccant can provide. Using two deliquescent dryer vessels in a series enables you to achieve a lower dew point. Using Dry-O-Lite desiccant in the first dryer vessel will knock out most of the moisture. This pre-dryer will also reduce the consumption of 10BF which is in the second dryer. At 100PSIG and inlet temperatures up to 250°F, the Dry Pak Pro Duo can achieve pressure dewpoints down to 29°F using 10BF desiccant. Along with the two dryer vessels the Dry Pak Duo also includes an aftercooler with an air motor and two F200 series filters. The Dry Pak Pro Duo has no power requirements and can be used anywhere. It has the ability to achieve lower dew points than refrigerated dryers and will not waste away electricity. This low-cost system is perfect for small jobs that require super dry air.
Portable Solutions
Portable compressed air dryers are available for purchase or rent for various applications. These applications include rental fleets, plant air system back-up, mobile abrasive blasting and painting, pipeline dehydration, and really any compressed air application requiring a -40 pressure dew point. With so many portable dryer options available, it is important to know you are buying or renting the right sized portable dryer and using the right components such as afterfilters and desiccants, based on the application. Be sure to check out our Buyers Guide for Portable Air Dryers to read more about common features and packages as well as other pertinent information such as warranties and customer support.

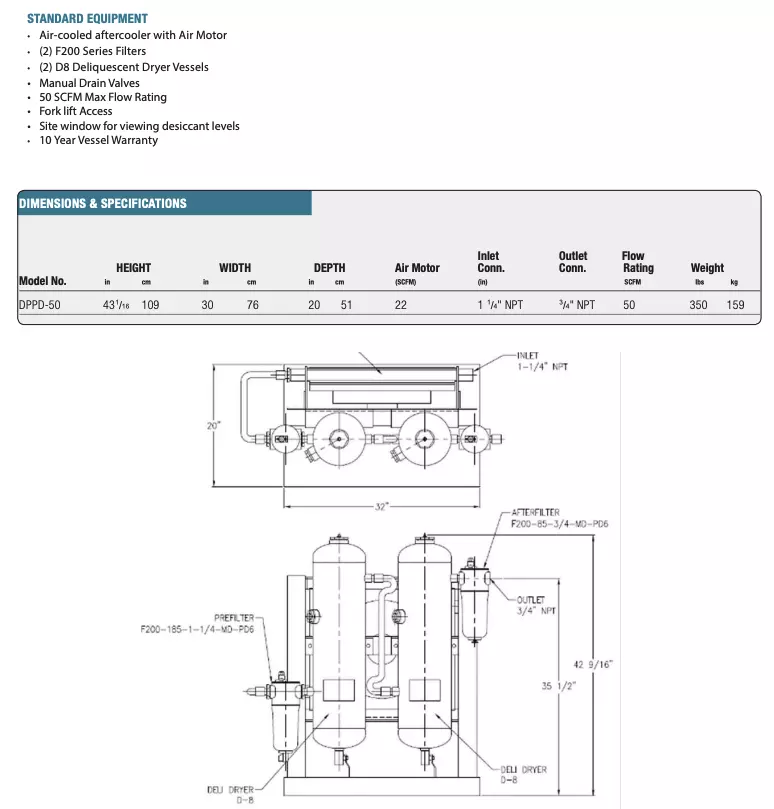

Vanair Dry Pak Pro Duo Features
Features
- Compact and Portable
- Air Cooled Aftercooler with Air Motor
- Low Dew Point
- 50 SCFM Max Flow Rating
- No Moving Parts
Applications
- Painting
- Sandblasting
- Shipbuilding
- Protecting air tools
- Instrument air
About Vanair Systems
Since 1944, Vanair Systems, located in Lake City, Pennsylvania, designs and manufactures dryers and desiccants for the dehydration of compressed air and natural gas. Van Air Systems’ compressed air dryers include single-tower deliquescent dryers, regenerative compressed air dryers, and natural gas dryers. Van Air Systems also manufactures products for the treatment of compressed air and natural gas which include adsorbent & deliquescent desiccants, particulate & coalescing filters, automatic condensate drains, and after-coolers. Having served for more than six decades and tens of thousands of customers in virtually every industry, Van Air Systems and its extensive network of factory-trained distributors are uniquely prepared to deliver the world’s finest solutions for cool, clean, and dry compressed air and gas.
Cyclect has the pre-sales, installation, stock and technical support for Vanair Systems products. We identify and recommend a suitable model for your specific application.
