Vanair In-Line Desiccant Air Dryers

Extremely dry compressed air or gas for pneumatic equipment or instruments

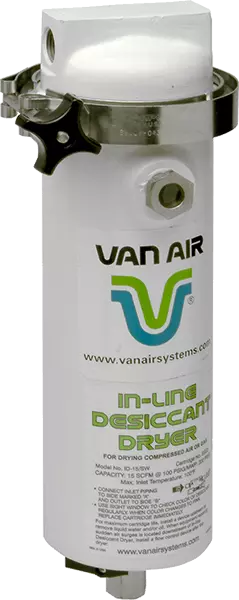

In-line desiccant air dryer

Van Air Systems In-line Desiccant Air Dryers supply a -40°F pressure dew point and are ideal for pneumatic equipment or instruments that require small volumes of extremely dry compressed air or gas. It uses two types of easy-to-replace disposal cartridges, the ID15/SW silica gel type or the ID15/IND molecular sieve type which provides a simple condition display. Van Air Systems In-line Dryers can be installed inside or outside in ambient temperatures up to 100°F. Only inlet and outlet connections are needed. In-line Desiccant Compressed Air Dryers perform effectively under cyclic or sporadic flow conditions. Pressure drop across the dryer is negligible.

Desiccant Compressed Air Dryers

The term Dew Point comes up often when talking about drying compressed air for our customers. Depending on the application, we will specify the right products in order to come up with the most cost effective dew point for any given facility. The dew point — which is the temperature where moisture starts to condense — is important when talking about compressed air as we want to prevent dew from forming inside piping and valves. Ambient temperatures may vary in a manufacturing environment as compressed air line may run indoors, outdoors, through air conditioned or refrigerated areas, etc. To ensure condensation does not reach the machinery the compressed air is being fed to, our products are designed to dry compressed air to a dew point that is at least 10°F below the lowest ambient temperature that the piping is exposed to.

When it comes to supplying portable compressed air dryers, Van Air Systems is unparalleled in the industry. Because we design our units around the use of desiccants that we manufacture in-house, this has allowed us to test our designs for function, durability, and duration over the entire lifespan of the unit. Other factors to consider when purchasing a portable compressed air dryer are overall dimensions of the unit, aftercooler dimensions, and a warranty. Van Air Systems units are robust in design, having a sturdy construction complete with a skid style base for easier transportation between sites. Our portable solutions feature an oversized aftercooler and air operated fan motor, eliminating the need for electricity on location to power the dryer. Lastly, Van Air Systems portable air dryers are designed for the long haul, and come complete with an industry leading warranty.

Energy Free
Systems are not electrically driven
Innovation
Innovative formulas and process for effective moisture removal
Durability
Designed and manufactured for heavy duty operations
No Moving Parts
Innovative formulas and process for effective moisture removal
Quality
American manufactured quality and technical support
Cost-Effective
Cost-effective to install and operate
Easy Maintenance
Systems are easy to maintain and operate

Vanair In-Line Desiccant Air Dryers Features

Features

  • Simple
  • Dependable
  • Versatile
  • -40°F pressure dew point
  • Low-pressure drop, less than 1 PSID
  • Industrial-grade materials for construction
  • No power or moving parts
  • Ideal for intermittent flow applications
  • Easily replaceable desiccant cartridge (ID-15 only)
  • Visual indication of desiccant life

Applications

  • Pneumatic control systems
  • Paint spraying
  • Drying natural gas
  • Point-of-use drying
  • Fuel gas for thermometric generators

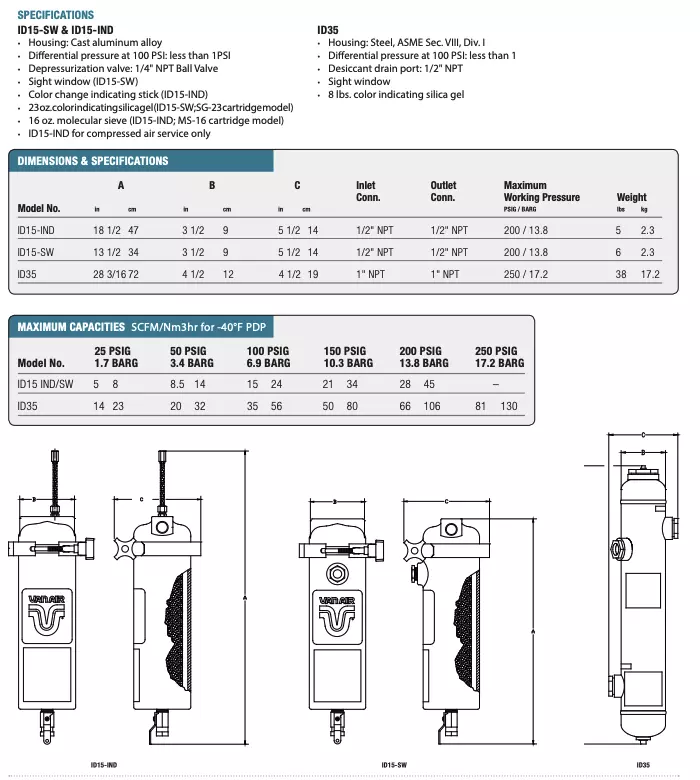

In-line desiccant air dryer specs
Van Air Systems

About Vanair Systems

Since 1944, Vanair Systems, located in Lake City, Pennsylvania, designs and manufactures dryers and desiccants for the dehydration of compressed air and natural gas. Van Air Systems’ compressed air dryers include single-tower deliquescent dryers, regenerative compressed air dryers, and natural gas dryers. Van Air Systems also manufactures products for the treatment of compressed air and natural gas which include adsorbent & deliquescent desiccants, particulate & coalescing filters, automatic condensate drains, and after-coolers. Having served for more than six decades and tens of thousands of customers in virtually every industry, Van Air Systems and its extensive network of factory-trained distributors are uniquely prepared to deliver the world’s finest solutions for cool, clean, and dry compressed air and gas.

Cyclect has the pre-sales, installation, stock and technical support for Vanair Systems products. We identify and recommend a suitable model for your specific application.
