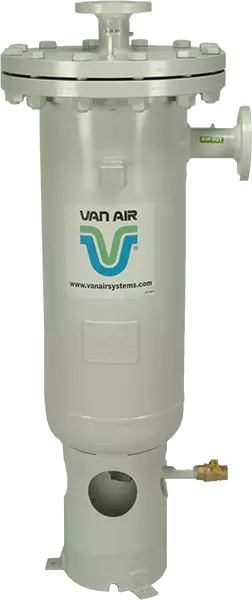

Van Air Systems Mist Eliminator is a special purpose coalescing filter for removing large volumes of oil and oil aerosols with a pressure drop of 1 psid or less. Minimizing pressure drop translates directly to energy savings. With a thick bed of glass fiber, the Mist Eliminator element facilitates self-cleaning by continuous draining. Contaminants are trapped at various stages within the fiber bed, not only at the surface. This prevents clogging and keeps pressure drop low.
Compressed Air & Gas Filters
Contaminants take many forms in compressed air and gas systems. Small particles of atmospheric dust not removed by compressor intake filters are concentrated during compression. Pipe scale forms over time by the interior rusting of air lines. Dirt and debris can enter gas lines from the well. Hot running lubricated compressors introduce hydrocarbons when lubricants break down. Over time these contaminants will wear out seals, damage sensitive instruments and pneumatic tools, foul heat exchangers & desiccant beds, and cause costly downtime. Put Van Air Systems filters and elements to work and see the difference that clean, trouble free air and gas make in your system.
Van Air Systems offers a wide range of filter housing designs to match the flow, pressure, and performance requirements of virtually any application. All filters are cast aluminum and ASME coded in a variety of element grades and flows. Van Air F200 cast filters are built for flows from 15cfm through 1600cfm. A Lifetime warranty accompanies this line and ensures that bowls and heads of these products provide unrivaled protection. Van Air also offers its F101 ASME coded filter line for both air and gas and are built for flows from 500cfm through 5000cfm. Both lines are built for longevity and unlike most competitors, Van Air ensures that their corresponding elements will not crush, fall apart and migrate downstream.
Vanair Mist Eliminators Features
Features
- Removes bulk liquids and oil aerosols from compresses air systems
- Low pressure drop
- 10 year element life
- Protects downstream equipment
- ASME code stamped housing
Applications
- Chemical processing
- Petrochemical
- Refining
- Iron and steel production
- Automotive
- Mining
About Vanair Systems
Since 1944, Vanair Systems, located in Lake City, Pennsylvania, designs and manufactures dryers and desiccants for the dehydration of compressed air and natural gas. Van Air Systems’ compressed air dryers include single-tower deliquescent dryers, regenerative compressed air dryers, and natural gas dryers. Van Air Systems also manufactures products for the treatment of compressed air and natural gas which include adsorbent & deliquescent desiccants, particulate & coalescing filters, automatic condensate drains, and after-coolers. Having served for more than six decades and tens of thousands of customers in virtually every industry, Van Air Systems and its extensive network of factory-trained distributors are uniquely prepared to deliver the world’s finest solutions for cool, clean, and dry compressed air and gas.
Cyclect has the pre-sales, installation, stock and technical support for Vanair Systems products. We identify and recommend a suitable model for your specific application.
