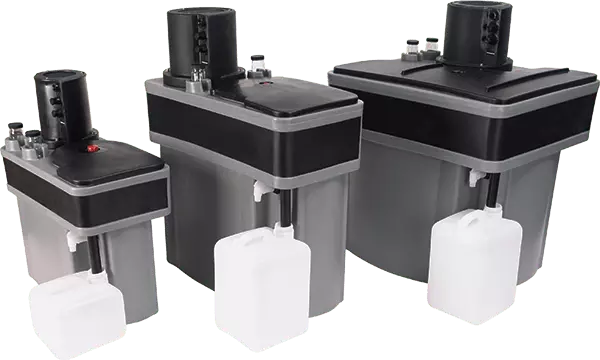

Van Air Systems Oil Water Separator is a low-cost option for removing lubricating oils from condensate streams. This heavy-duty device is designed to simultaneously process different types of poly glycol oils. These oil-water separators are ready for continuous operation to remove lubricants to levels that comply with most requirements and are designed to function in most ambient circumstances all year.

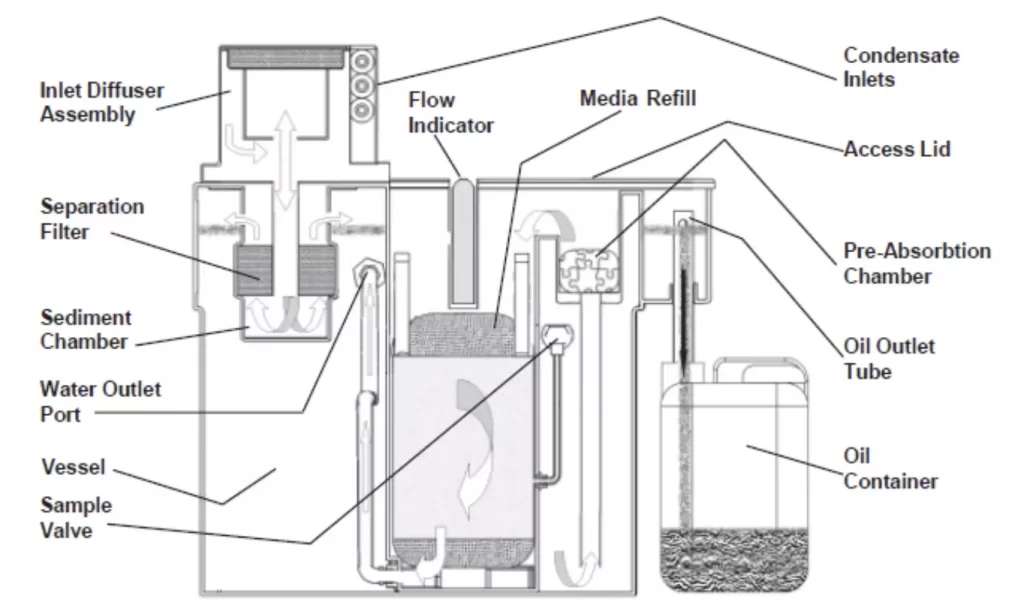

To stay in compliance, these Oil Water Separators use multi-stage separation technology to clean up condensate streams. The first stage catches rust, filth, and scale and keeps them from entering the main reservoir. The main reservoir allows oil to congeal and float to the surface. The following chamber eliminates the remaining oil segment from the solution. Finally, the carbon beds ensure that condensate meets or exceeds discharge restrictions in the final stage.
Vanair Oil Water Separators Features
Features
- No Electricity Required
- Low Maintenance Costs
- Multi-stage Separations

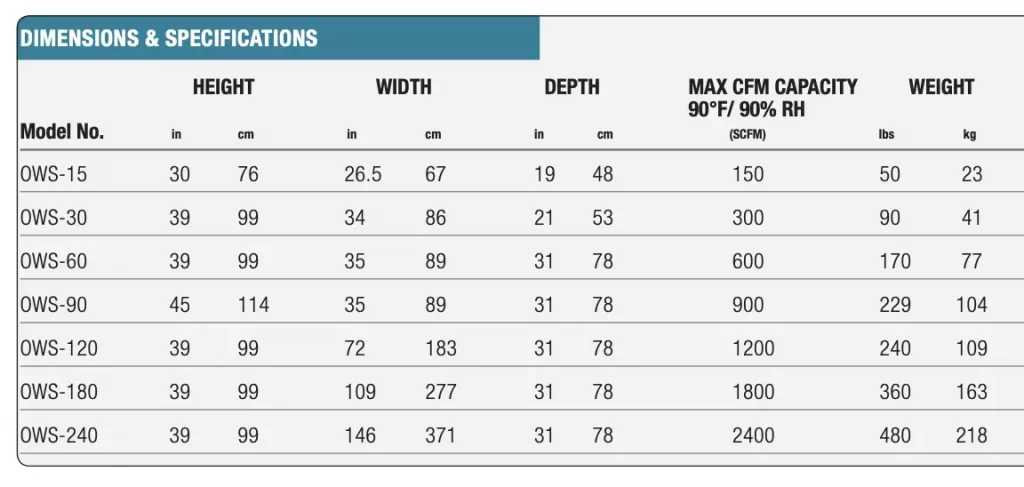

Specifications
- Max CFM capacity at 90°F/ 90% RH: 150 ~2400 SCFM
- Inlet Diffuser
- Multiple Inlets
- Removable access lid
- Translucent oil container
- Flow indicator
- Sample & reference jars
Applications
- Industrial applications
- Oil flooded compressors
About Vanair Systems
Since 1944, Vanair Systems, located in Lake City, Pennsylvania, designs and manufactures dryers and desiccants for the dehydration of compressed air and natural gas. Van Air Systems’ compressed air dryers include single-tower deliquescent dryers, regenerative compressed air dryers, and natural gas dryers. Van Air Systems also manufactures products for the treatment of compressed air and natural gas which include adsorbent & deliquescent desiccants, particulate & coalescing filters, automatic condensate drains, and after-coolers. Having served for more than six decades and tens of thousands of customers in virtually every industry, Van Air Systems and its extensive network of factory-trained distributors are uniquely prepared to deliver the world’s finest solutions for cool, clean, and dry compressed air and gas.
Cyclect has the pre-sales, installation, stock and technical support for Vanair Systems products. We identify and recommend a suitable model for your specific application.
