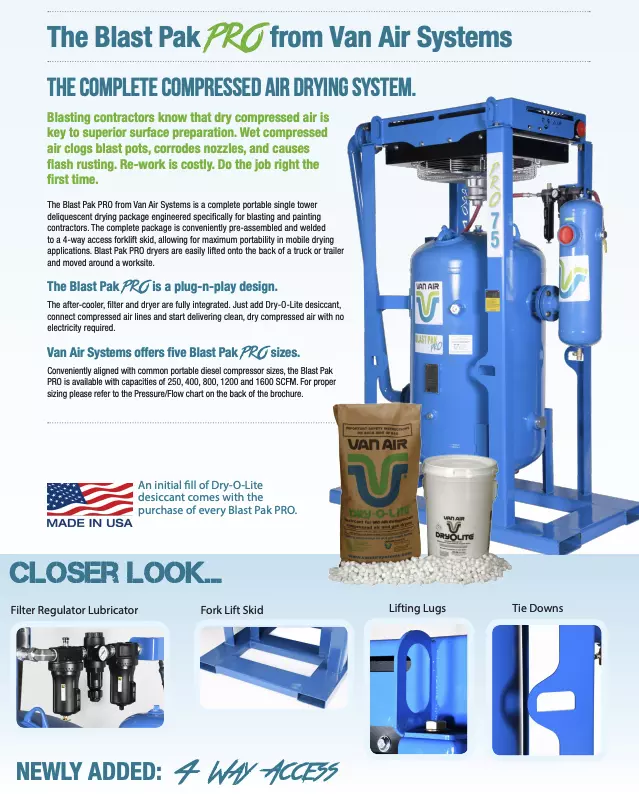

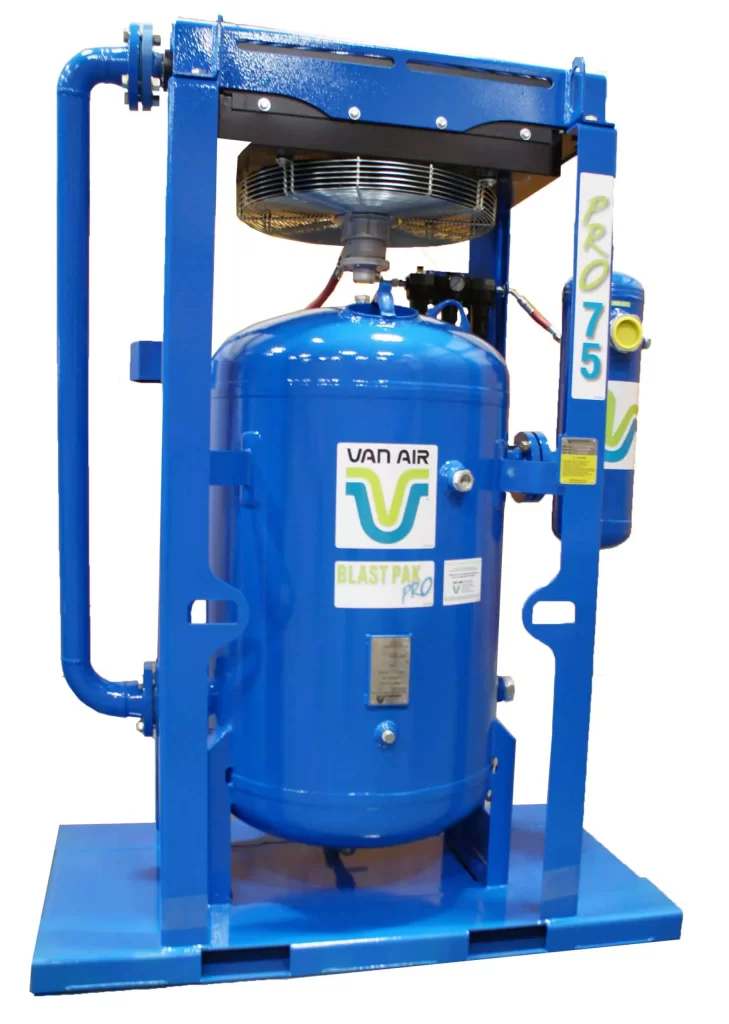

Van Air Systems Blast Pak PRO compressed air system, is a single tower deliquescent drying package with conveniently integrated peripherals that are pre-assembled and welded to a forklift skid, allowing maximum portability for mobile drying applications. These compressed air systems can be easily lifted on the back of a truck or trailer and moved about within a plant or worksite. An ideal solution for mobile blasting contractors. Wet compressed air clogs blasting pots and compromise the quality of the blasted substrate by putting moisture back on the surface. This moisture then flashes to rust, necessitating costly re-work.
With an integrated aftercooler, the Blast Pak PRO first cools hot and wet air discharged from the compressor. Cooling forces a substantial quantity of entrained moisture to condense. But even after exiting the aftercooler, the air is still saturated with vapour (100% relative humidity). Next, the compressed air passes through the drying vessel, which contains a specially formulated Van Air desiccant called Dry-O-Lite. This desiccant cuts the humidity of the air roughly in half. Finally, air flows through an after-filter to trap any fine particulate matter suspended in the airflow. The blasting contractor is left with cool, clean, and dry compressed air for superior blasting quality and zero downtime.
Portable Solutions
Portable compressed air dryers are available to purchase or rent for a wide range of applications. These applications include rental fleets, plant air system back-up, mobile abrasive blasting and painting, pipeline dehydration, and really any compressed air application requiring a -40 pressure dew point. With so many portable dryer options available, it is important to know you are buying or renting the right sized portable dryer, and using the right components such as afterfilters and desiccants, based on the application. Be sure to check out our Buyers Guide for Portable Air Dryers to read more about common features and packages as well as other pertinent information such as warranties and customer support.

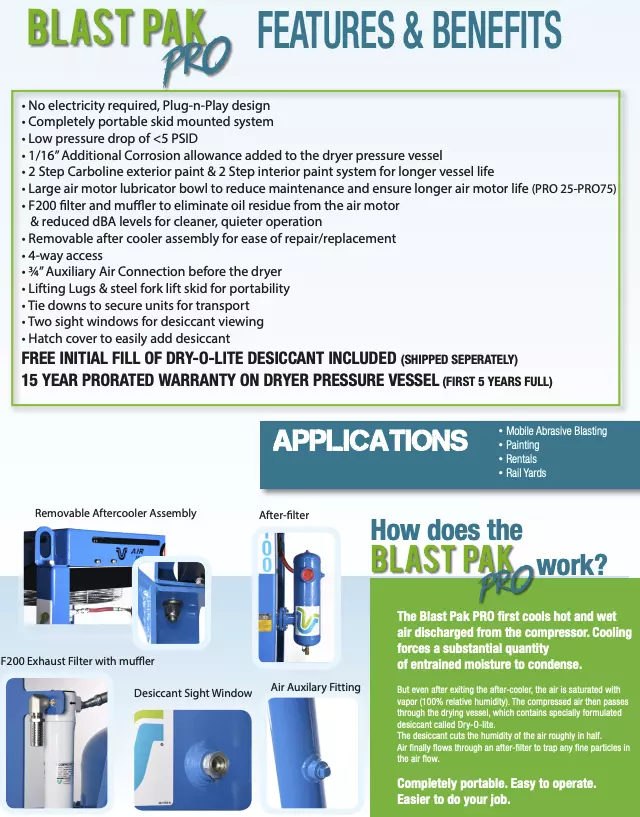

Vanair Blast Pak Pro Features
Features
- Portable
- Effective
- Durable
- All-in-One Portable Package
- No electricity required
- Increase productivity

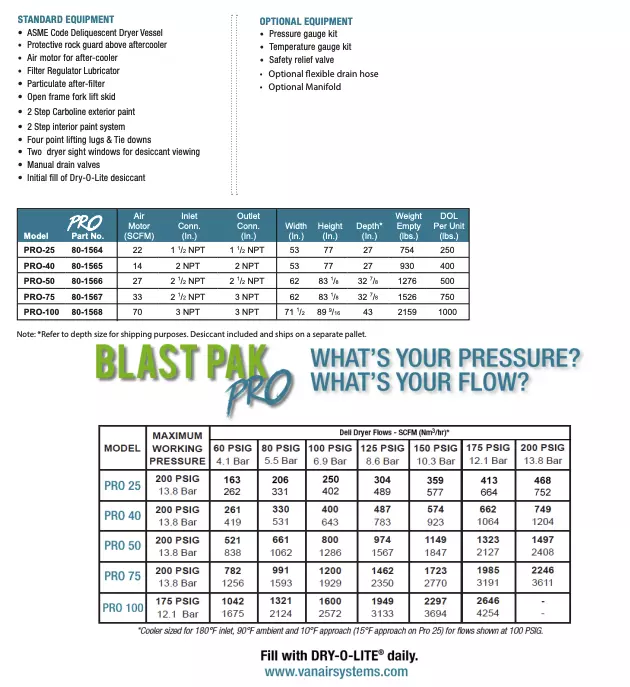

- 250-1600 SCFM
- No electricity required, plug-n-play design
- Two step interior and exterior paint for longer vessel life
- F200 filter and muffler to eliminate oil residue from air motor
- Removable aftercooler assembly for ease of repair / replacement
- 3/4″ Auxiliary air connection before the dryer
- Lifting lugs and steel forklift skid for portability
- Tie downs to secure units for transportation
- Two sight windows for desiccant viewing
- Free initial fill of DRY-O-LITE desiccant included and shipped separately
- 15 years prorated warranty on Dryer Pressure vessel (1st 5 years Full 100% warranty)
Applications
- Mobile abrasive blasting
- Painting
- Rail yards
- Rentals
About Vanair Systems
Since 1944, Vanair Systems, located in Lake City, Pennsylvania, designs and manufactures dryers and desiccants for the dehydration of compressed air and natural gas. Van Air Systems’ compressed air dryers include single-tower deliquescent dryers, regenerative compressed air dryers, and natural gas dryers. Van Air Systems also manufactures products for the treatment of compressed air and natural gas which include adsorbent & deliquescent desiccants, particulate & coalescing filters, automatic condensate drains, and after-coolers. Having served for more than six decades and tens of thousands of customers in virtually every industry, Van Air Systems and its extensive network of factory-trained distributors are uniquely prepared to deliver the world’s finest solutions for cool, clean, and dry compressed air and gas.
Cyclect has the pre-sales, installation, stock and technical support for Vanair Systems products. We identify and recommend a suitable model for your specific application.
