Van Air Systems Moisture Block is the simplest, most cost-effective point-of-use compressed air dryer available anywhere, delivers moisture-free air. With the use of activated alumina desiccant it is capable of achieving a -40ºF pressure dew point. The Moisture Block allows you to spray paint, sandblast, run tools or plasma cutters for months and even years before needing new desiccant. The Moisture Block is a unique dryer that merges low initial cost and low operating costs.
Desiccant Compressed Air Dryers
The term Dew Point comes up often when talking about drying compressed air for our customers. Depending on the application, we will specify the right products in order to come up with the most cost effective dew point for any given facility. The dew point — which is the temperature where moisture starts to condense — is important when talking about compressed air as we want to prevent dew from forming inside piping and valves. Ambient temperatures may vary in a manufacturing environment as compressed air line may run indoors, outdoors, through air conditioned or refrigerated areas, etc. To ensure condensation does not reach the machinery the compressed air is being fed to, our products are designed to dry compressed air to a dew point that is at least 10°F below the lowest ambient temperature that the piping is exposed to.
When it comes to supplying portable compressed air dryers, Van Air Systems is unparalleled in the industry. Because we design our units around the use of desiccants that we manufacture in-house, this has allowed us to test our designs for function, durability, and duration over the entire lifespan of the unit. Other factors to consider when purchasing a portable compressed air dryer are overall dimensions of the unit, aftercooler dimensions, and a warranty. Van Air Systems units are robust in design, having a sturdy construction complete with a skid style base for easier transportation between sites. Our portable solutions feature an oversized aftercooler and air operated fan motor, eliminating the need for electricity on location to power the dryer. Lastly, Van Air Systems portable air dryers are designed for the long haul, and come complete with an industry leading warranty.

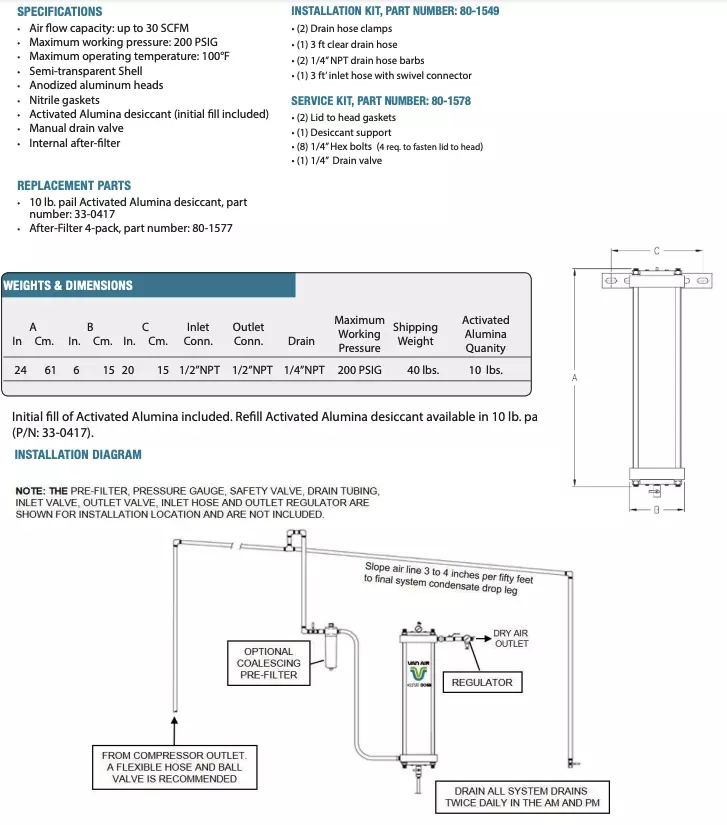

Vanair Moisture Block Features
Features
- Simple
- Long Lasting
- Value/affordable
- Effective
- Easy to maintain
- Up to 30 SCFM
- 200 PSIG maximum working pressure
- Activated alumina desiccant (initial fill included)
- -40°F dew point
- 1 year warranty
- No electricity required
Applications
- Autobody & collision repair
- Tire shops
- Woodworking
- Light assembly
- Paint booth & blast cabinets
About Vanair Systems
Since 1944, Vanair Systems, located in Lake City, Pennsylvania, designs and manufactures dryers and desiccants for the dehydration of compressed air and natural gas. Van Air Systems’ compressed air dryers include single-tower deliquescent dryers, regenerative compressed air dryers, and natural gas dryers. Van Air Systems also manufactures products for the treatment of compressed air and natural gas which include adsorbent & deliquescent desiccants, particulate & coalescing filters, automatic condensate drains, and after-coolers. Having served for more than six decades and tens of thousands of customers in virtually every industry, Van Air Systems and its extensive network of factory-trained distributors are uniquely prepared to deliver the world’s finest solutions for cool, clean, and dry compressed air and gas.
Cyclect has the pre-sales, installation, stock and technical support for Vanair Systems products. We identify and recommend a suitable model for your specific application.
