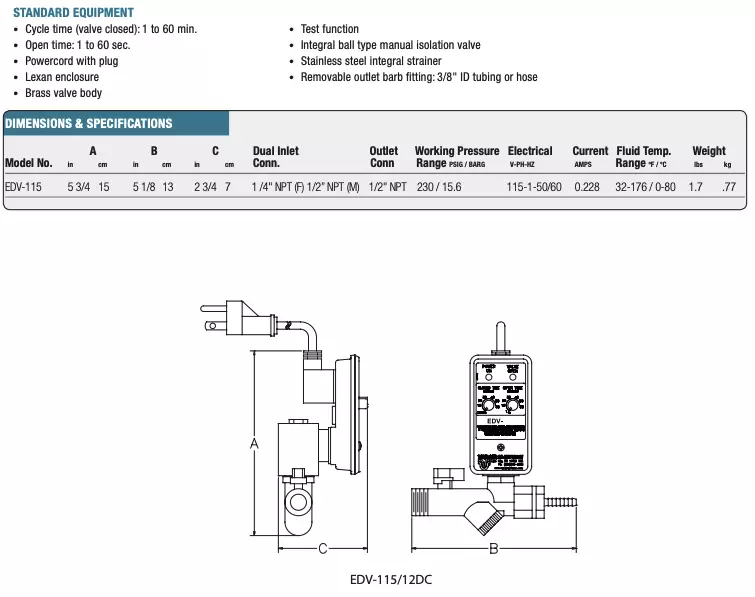

Van Air Systems Electric Drain Valve (EDV) automatically removes condensate from your air system inexpensively and reliably. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining. The EDV also eliminates the need for the wasteful practice of bleeding or leaving cracked open manual drain valves. With adjustable valve open and cycle time settings, all EDV Series drain valves can be set for your operating conditions. The valve open time may be set for 10 to 60 seconds and the cycle time may be set to 1 to 60 minutes.
Automatic Drain Valves
Cooling, drying and filtering your compressed air is only part of the air treatment process. In a 100 scfm system operating at 100 psig in ambient conditions of 70°F and 50% relative humidity, each 8-hour shift produces 2.5 gallons of condensate that must be drained from the system. Van Air Systems offers a variety of sturdy and economical options for draining condensate from your compressed air system. Automatic drains remove condensed liquid – usually a mixture of water and compressor lubricant — from compressed air systems. Our drain valves are commonly installed on air receiver tanks, drip legs, bulk moisture separators, coalescing filters, refrigerated air dryers, and deliquescent air dryers.
Vanair Solenoid Electric Drains Features
Features
- Installed indoors or outdoors
- Lexan enclosure
- Maximum alloawable working pressure 230 PSID
- Solid State Timer
Applications
- Filters and separators
- Drop legs
- Aftercoolers
- Refrigerated dryers
About Vanair Systems
Since 1944, Vanair Systems, located in Lake City, Pennsylvania, designs and manufactures dryers and desiccants for the dehydration of compressed air and natural gas. Van Air Systems’ compressed air dryers include single-tower deliquescent dryers, regenerative compressed air dryers, and natural gas dryers. Van Air Systems also manufactures products for the treatment of compressed air and natural gas which include adsorbent & deliquescent desiccants, particulate & coalescing filters, automatic condensate drains, and after-coolers. Having served for more than six decades and tens of thousands of customers in virtually every industry, Van Air Systems and its extensive network of factory-trained distributors are uniquely prepared to deliver the world’s finest solutions for cool, clean, and dry compressed air and gas.
Cyclect has the pre-sales, installation, stock and technical support for Vanair Systems products. We identify and recommend a suitable model for your specific application.
